Amplifier Integration Interface for Select 2022+ Toyota Vehicles with Premium Amplified Systems
AmpPRO 4 Amplifier Integration Interface for Select 2022+ Toyota Vehicles with Premium Amplified Systems Models with 30, 28, and 10 Pin Connectors
| Year(s) | Make | Model | Trim Level | Additional Info |
|---|---|---|---|---|
| 2023 | TOYOTA | COROLLA HATCHBACK | ALL TRIM LEVELS | — |
| 2024 | TOYOTA | HIGHLANDER | ALL TRIM LEVELS | — |
| 2024 | TOYOTA | LAND CRUISER | ALL TRIM LEVELS | — |
| 2024 | TOYOTA | TACOMA | ALL TRIM LEVELS | — |
| 2022-2024 | TOYOTA | TUNDRA | ALL TRIM LEVELS | — |
AmpPRO simplifies the installation of upgraded amplifiers in select amplified sound systems. With AmpPRO, you can improve the audio performance while keeping the original radio’s fit, finish, and features.
Benefits
- Simplifies amplifier installation
- Prevents the need for summing and DSP devices
- Provides factory sound system upgrade solution
Features:
- Upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
- Variable volume, fader, balance, bass, mid and treble audio settings
- Front, rear, sub preamp outputs (5 volt RMS)
- Customized OE bass, mid and treble center frequency selection
- Retains Bluetooth audio, Navigation prompts, and all warning chimes
- Plug-and-Play installation
- Sublevel controller included
- Optional TOSLINK optical output (APA-TOS1 sold separately)

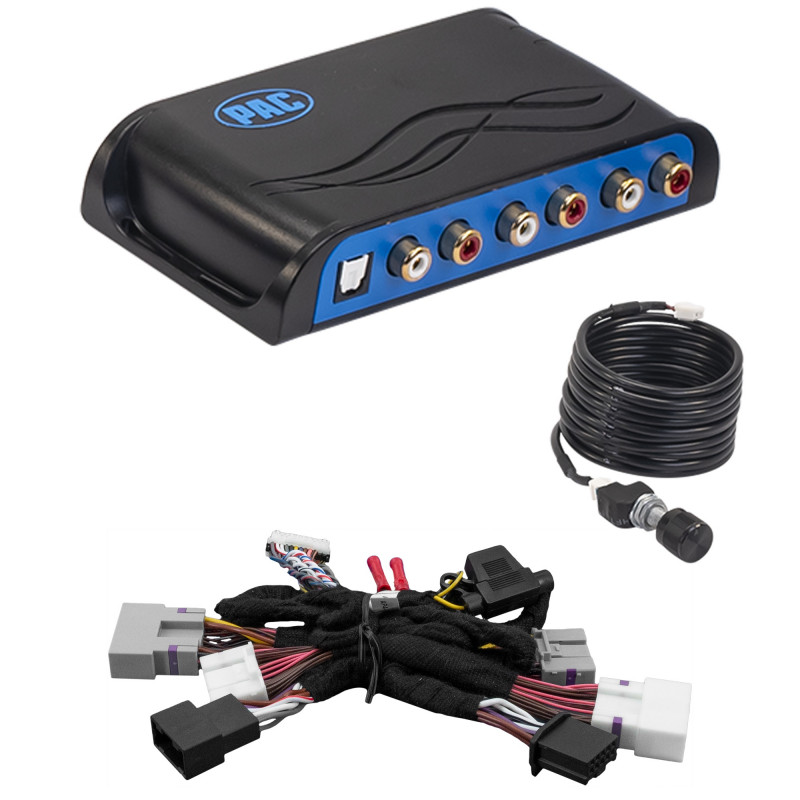

Includes
AmpPRO module
Harness
Bass knob
Knob harness
Manual
How it works:
- AP4-TY14 Instruction Manual
- Download (1011.25k)
